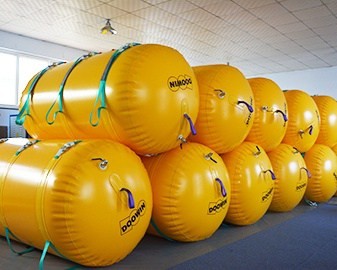

Marine Salvage Bag 1
Single-Point Buoyancy Units

Single-point buoyancy units are a type of enclosed pipeline buoyancy bag designed with a single lifting point, making them highly effective for steel or HDPE pipeline laying operations at or near the water surface. Like parachute-type air lift bags, they can also operate at large angles, providing flexibility for a variety of lifting and positioning tasks.

Key Features

  • Constructed from heavy-duty PVC-coated fabric in compliance with IMCA D-016
  • Fitted with pressure relief valves and filling/discharge ball valves for safe and controlled operation
  • Includes internal strops connecting the top and bottom lifting points; optional reinforcing lifting belts can increase lifting capacity
  • Designed for precise and stable flotation of pipelines at or near the surface

Key Advantages

  • Steel and HDPE pipeline laying
  • Surface or near-surface underwater lifting operations
  • Situations requiring angled lifting or controlled positioning

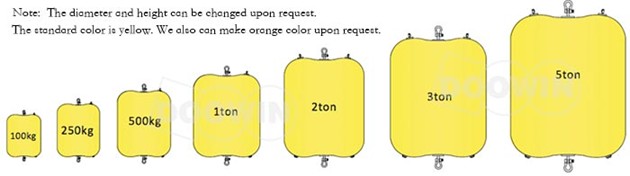

  • Available in capacities up to 5 tons
  • For higher-capacity requirements, Marine Salvage Bags are recommended

It’s provide a safe, reliable, and versatile solution for pipeline flotation and lifting operations, combining precision control with industrial-grade durability.

Air Lifting Bag marine salvage bags are a reliable flotation solution when precision, stability, and durability are required.

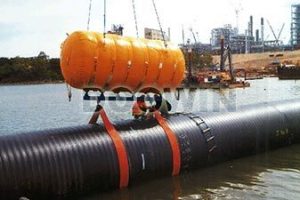

760a09d91ce01bb6681d71d031affa9b.pipeline-inflatable-buoyancy-units-300x200

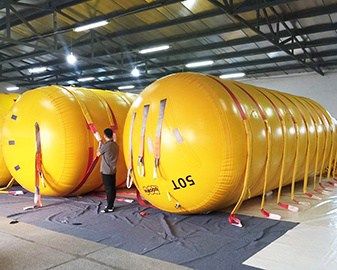

008ae192141b994f7818f39d2003599e.air-lift-bags

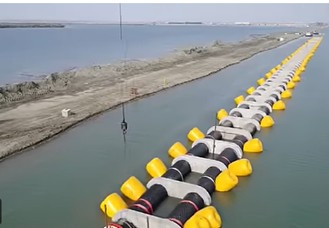

Marine Salvage Bag 2

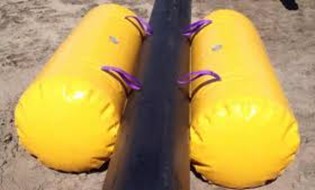

Twin Boom Inflatable Cable Floats

Twin boom inflatable cable floats provide an ideal solution for cable and pipeline installation support, offering reliable buoyancy and stability for underwater operations. They can be used as cable floats, hose floats, or pipeline floats, serving as versatile inflatable buoyancy units.

Key Features

  • Dual independent floaters provide stable and balanced support
  • Constructed from heavy-duty PVC-coated fabric, the same durable material used in underwater air lift bags and water bags
  • Manufactured as two individual boom floats connected by a fabric or strap system to support cables or pipelines
  • Easy placement and attachment of cables or pipes on the support system

Key Applications

  • Cable installation and support in marine environments
  • Pipeline floatation and positioning
  • Hose and flexible pipe support for underwater operations

Twin Boom Specification

Single Point Buoyancy

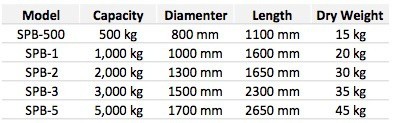

Single point buoyancy Specification

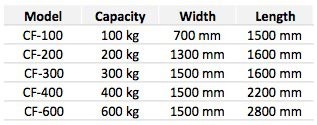

Twin Boom spec
